Telemark Binding Selection Guide

last updated 20nov16 & 20dec15

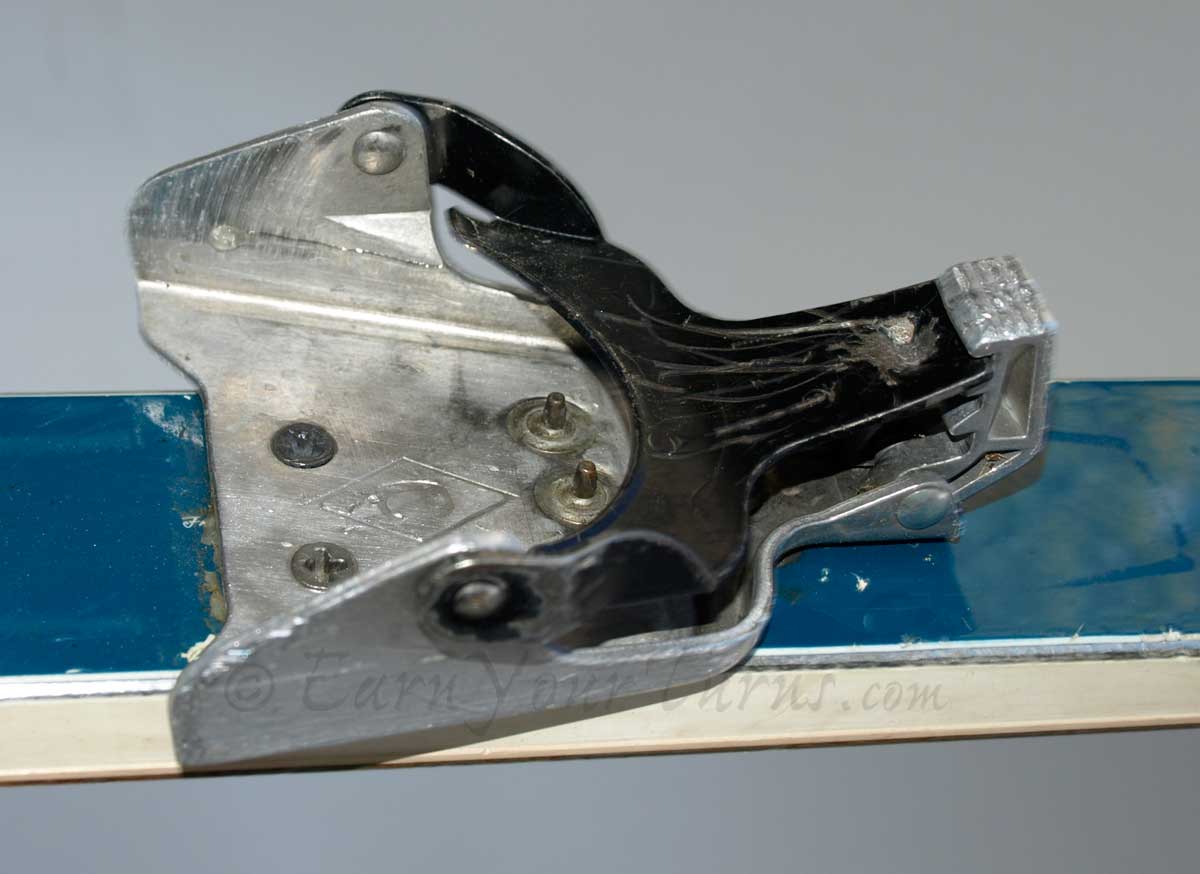

The Chouinard 3-pin Classic.

The Chouinard 3-pin Classic.

When you’re ready to march to the beat of a different drummer, whether you need a new challenge or your rebel spirit compels you that way, this guide is offered to help you decide what binding to get.

When it comes to picking a telemark binding there are many things to consider. Releasability, downhill power, touring freedom, and weight are the dominant characteristics to consider. There is no right or wrong answer with any. The best binding for you is not necessarily the best for someone else based on the boot used, style of skiing, and goals.

Releaseability

The common view of why telemarking is stupid.

Non-release reaction.

The majority of telemark bindings do not have a safety release function. To those who are coming from alpine skiing where the release value of bindings is adjustable, certified, and tested, this absence seems foolish. Yet, thousands of telemark skiers have learned and accepted that while this lack of release can result in injury, the inherent flexibility of the telemark boot/binding system tends to absorb forces that would cause injury in an alpine set up, and thus avoid those injuries; usually (see M. Tuggy, MD’s report). Please note, this ability to absorb forces is strongly dependent on your ability as a telemark skier to learn how to instinctively fall safely (generally a forward somersaulting action) to actively avoid injury. This may not be possible in all circumstances.

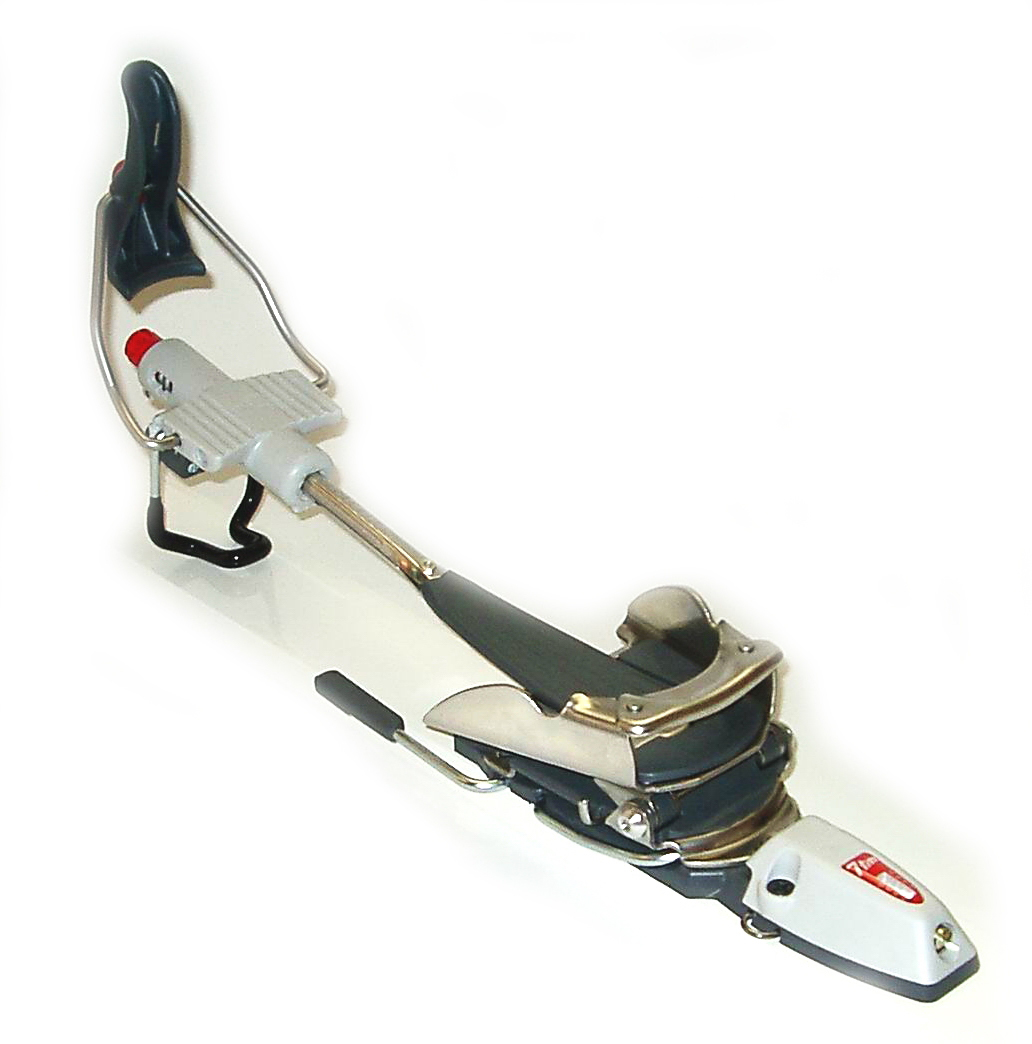

7tm is TUV certified for release.

7tm is TUV certified for release.

If you are new to the sport and reluctant to trust in this system there are a few bindings that offer a safety release. The 7tm is the only telemark binding with a TUV certified safety release system. Rottefella’s NTN bindings offer release capability, but it is not TUV certified. Voile made a releaseable binding for two decades, the CRB, but ceased production due to lack of interest. Like Rottefella’s NTN bindings it was never certified, but it did/does work. Voile’s CRB is available in the used market only.

Downhill Power

Axl - 4 lbs. of pure power with a free-pivot.

Axl – 4 lbs. of pure power with a free-pivot.

This is a factor that becomes very personal. Some people like a more active binding, some less. Activity describes how much the cable tension, or resistance to heel lift from the binding adds to the sensation of control when telemarking. Telemark bindings without cables, like a classic 3-pin binding, or Spike Lite, are considered neutral. Those with more spring tension in the cable are more active.

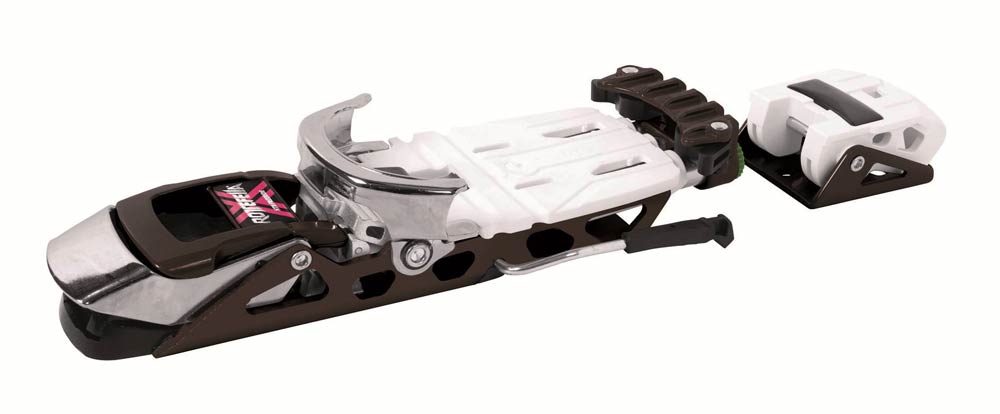

The  NTN Freeride has unequaled lateral control.

The NTN Freeride has unequaled lateral control.

How much power you like will depend in part on how stiff the flex of your boot is, and how wide your skis are. Generally the wider your skis, and the stiffer your boots, the more active you will want your binding. A cable with more tension will help with flexing a stiffer boot, and deliver more power to the edges of wider skis. In softer snow conditions, and with a softer boot, or narrower skis, less tension is needed, or may be sacrificed in exchange for more powder sensitivity.

There is another, subtle factor at play with telemark bindings; how quickly the activity is engaged. Cable bindings that are routed underfoot tend to add tension faster than cable bindings that are routed along the side of the binding. In addition, the position of the pivot affects how quickly tension is engaged as the heel is lifted on the trailing foot. The further aft it is, the faster it engages.


Downhill Ratings

Make/Model
Cable Routing
Pivot Pos’n
(behind pin line)
Ramp Angle
Activity
(HH rating)
Lateral
Control
Blk Diamond O1
Under
2 cm
0
2-4
4
Brnt Mt. Spike XT
Under
3-5cm
0
3-5
4
Brnt Mt. Spike NT
Under
3-5cm
0
3-5
4
Brnt Mt. Spike Lite
n/a
n/a
n/a
1.5
2
G3 Targa Ascent
Side
2
2-3
2.5
G3 Enzo
Under
2.5-5cm
2-4.5
3
M-Equip Meidjo
Under
56mm
n/a
2-3
4.5
OMG TTS
Under
50–82mm
n/a
4-5
4.5
7tm Pwr Tour
Under
2cm
0
2-3
3
Rottefella FreeRide
Under
n/a
0
3-5
5
Rottefella Freedom
Under
n/a
curved
2-4
3.5
22D Axl
Under
3, 4, 5cm
3-5
4.5
22D Outlaw
Under
56 mm
3-5
5
Voile Switchback
Side
2 cm
2-3
3
V Switchback X2
Side
3 cm
3.5
3.5
Voile 3-pin
n/a
n/a
0
1
2


The ratings in the table above are based on the Hammerhead scale, a cable binding developed by Rainey Designs with underfoot cable routing and adjustable cable pivot points. The numbers correspond to the cable pivot positions, from 1 to 5 with 5 being the furthest aft from the toe of the boot, and the most active. The most popular position, or power activity, is probably a tie between HH#3 and HH#4.

If you are learning to telemark a binding with an adjustable pivot location is recommended. You will be more comfortable adapting to a free heel with a lot of tension to begin with. However, it is recommended that as you gain balance and confidence that you dial down the tension to help learn the nuances of the telemark turn. Experienced leathernecks will assure you the telemark turn can only be fully mastered through the trials of learning to adapt with a soft boot and a neutral binding. That may not be completely true, but the perseverance it requires always yields improvements to technique.

Touring Freedom

TTS still delivers tons of free-pivot ROM.

TTS still delivers tons of free-pivot ROM.

There are many reasons to want to telemark, but since this site is focused on earning turns, bindings that don’t tour well are not presented. I tend to classify the touring function of telemark bindings as Awesome (those with a free-pivot feature), Bearable (low resistance to heel lift), and Sufferable (cable bindings with high resistance to heel lift). The downhill performance of cable bindings without a tour mode are identical to their siblings that have the tour mode, with a modest reduction in weight and a dramatic decrease in touring efficiency. When you are earning your turns in the skin track, resistance is futile.

A solid 50 deg ROM is plenty for long strides and tight kick turns.

A solid 50° ROM is plenty for long strides and tight kick turns.

The less friction or resistance there is to lifting your heel, and the lighter the weight, the better the touring capability. How far you can lift the heel, the range of motion, without resistance is a part of the resistance equation. More ROM yields less overall resistance and greater efficiency. In addition, the position of the pivot can affect efficiency. The further in front of your toe it is, the more inertial resistance there is. This is subtle, but is also affected by the weight of the binding and how far it extends behind the pivot. The more there is, the greater the inertial resistance affecting efficiency.

Since the new millenium, touring specific telemark bindings have a distinct tour mode. In most cases this is a switch that allows the toe plate to pivot freely, or with dramatically reduced resistance. How easy that switch is to engage is part of the touring value of a binding.

There are currently three touring configurations to chose from, in order of development:

Weight

Weight is the easiest feature to check, and generally speaking, the least important to consider. For in-bounds skiing it is irrelevant. For earning turns, all other features being equal, lighter is better.

Icing

The tendency for a binding to ice up is largely due to snow conditions. Moist, sticky snow is more likely to glam onto your bindings and pack into ice which increases the weight you are carrying, and can frustrate the ability to easily switch from touring back to turning mode. However, some bindings are more prone to icing than others.

In some cases you only need to toggle the mode switch back and forth a few times to dislodge the ice. In other cases you need to step out of the binding and chip the ice off; a deft jab with a ski pole can do the trick, sometimes you need a screwdriver. In descending order of likelihood that ice will hamper mode switching: G3′s Ascent, Rottefella’s Freedom, R’s Freeride, BD’s O1, 22D’s Axl, Switchback X2, 22D’s Outlaw, 7tm Power Tour, Switchback, and G3′s Enzo. Snow can pack underfoot with TTS, preventing your foot from resting flat. It doesn’t prevent adding or removing the heel, but you’ll want to clean out the buildup before heading down.

Touring Ratings

Make/Model
Class
Weight
(oz)
Weight
(grams)
Pivot
(mm)
ROM
Icing
Peg Ease
Rating
Blk Diamond O1
A
30
850
-2
60+°
2
2.5
4.5
Brnt Mt. Spike XT
A
28
750
+8
45+°
n/a
3
3.75
Brnt Mt. Spike NT
A
28
750
+8
45+°
?
3
3.75
Bnt Mt. Spike Lite
B
13
370
n/a
½
3
3
G3 Ascent
A
25
710
+5
55+°
4
5
4
G3 Enzo
A
31
880
0
50+°
0
4
4.5
7tm Pwr Tour
A-
33
940
+14
65+°
½
1
3.75
M-Equip Meidjo
A
20
575
0
90°
2
4
4.75
OMG TTS
A
17½
495
0
90°
2
4.75
Rotte Freeride
B+
32.6
925
+5
30°
1
3
2.5
Rotte Freedom
A-
27
775
-5
50+°
3
4
3.75
22D Axl
A
32
910
0
45+°
5
4.25
22D Outlaw
A
29½
835
0
55+°
5
4.5
Voile Switchback
A
24
680
+4
50+°
½
3
5
V Switchback X2
A
26
740
+4
50+°
¾
3
4.75
Voile 3-pin
B
440
0
2.5



In the touring ratings above the final rating is predominantly determined by how frictionless the pivot is. Ideally all telemark bindings with a free-pivot for touring get a rating of 5, but then other factors can erode that efficiency such as the touring ROM, weight, how easy the climbing posts are to engage, and a binding’s propensity for icing up. A higher value for icing means it is more likely to ice up, hampering mode switching. The values are relative.

Final Selection

With two different systems you need to decide which way to go: Classic 75mm with a duckbill, or NTN with a duckbutt. There are more choices in the 75mm category, and they are all solid choices, but what is possible in terms of power and freedom have pretty much limited out. That’s a pretty high limit compared to back in the day, but a limit nonetheless.

Scarpa's TX-Pro w/tech inserts

Scarpa’s TX-Pro w/tech inserts

The limit of what is possible with NTN is unknown. With NTN there are fewer boot and binding choices. They span nearly the same range of power and freedom, but you need to be more careful in the boot you choose. If you want a frictionless pivot for touring, be sure to get a boot with tech fittings so you can either switch between a telemark binding using a 2-pin tech toe (TTS) or an AT binding. That’s another benefit of NTN, you can switch hit with the same boot and lock your heel if you desire, although most prefer a more rigid AT boot when locking the heel (After 2016 NTN boots with tech fittings will not come with the heel insert. This limits the alpine functionality to plate bindings, a desperate decision at best.).

With NTN there are more choices for a releasable binding. Generally speaking these systems provide more lateral control, and plenty of power. The boots are also lighter compared to their 75mm equivalents.

While there are lots of choices to be made, hopefully the tables above and guidelines presented here will clarify, not confuse you when you’re ready to buy.

Remember, not everyone can tele.
